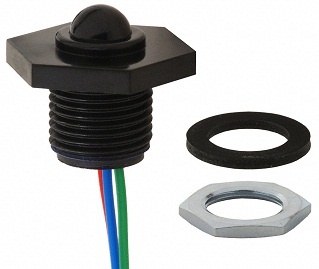

REAR MTNG.LIQUID LEVEL SENSOR
Product Code: 317819
Product Description:
SENSOR REAR MTNG.LIQUID LEVEL SENSOR LLE103000
| Sensor Type |
|
Enhanced Sensor |
| Operating Temperature |
|
-25 °C to 80 °C [-13 °F to 176 °F] |
| Storage Temperature |
|
-30 °C to 85 °C [-22 °F to 185 °F] |
| Housing Material |
|
Polysulphone |
| Housing Type |
|
Type 3 |
| Supply Voltage |
|
5.0 Vdc to 12.0 Vdc |
| Output Type |
|
High in air |
| Application Type |
|
Variable |
| Termination Type |
|
250 mm lead wires |
| Seal Washer |
|
Nitrile rubber |
| Stainless Steel Nut |
|
Yes |
| Dome Dimension |
|
3,5 mm radius |
| Thread Dimension |
|
M12 x 1 x 8g |
| Hex Dimension |
|
19 mm [0.75 in] |
| Pressure Range |
|
0 to 5 bar |
| Supply Current |
|
15 mA nom. |
| Output Current Sinking |
|
10 mA max. @ 25 °C |
| Repeatability |
|
1 mm [0.04 in] |
| Hysteresis |
|
2 mm [0.08 in] |
| Response Time - Rising Liquid |
|
50 µs |
| Response Time - Falling Liquid |
|
1 s max. (in ethanol) |
