STEPPER MOTOR BIPOLAR 48mm NEMA-17

Product Code: P3D42BYJSM

Price: €24.96 (Incl Vat)


Product Description:


Stepper Motor 42BYGHW811 NEMA-17 Bipolar 48mm (ER-P3D42BYJSM)

Stepper motors are different from DC motors because they have to be pulsed to move in set increments. That means that they can't simply hook them up to a power supply to make them go, however, they have other advantages, like accurate positioning (1 pulse=1 increment of movement), and a high degree of low-speed torque (ability to twist things). This 4-wire bipolar stepper has 1.8° per step for smooth motion and holding torque. This NEMA-17 stepper motor produces a whopping 4800g*cm (66.7in*oz) of holding torque. Applications include stage lighting, laboratory instruments, textile machinery, telescope positioning, robotics, etc.

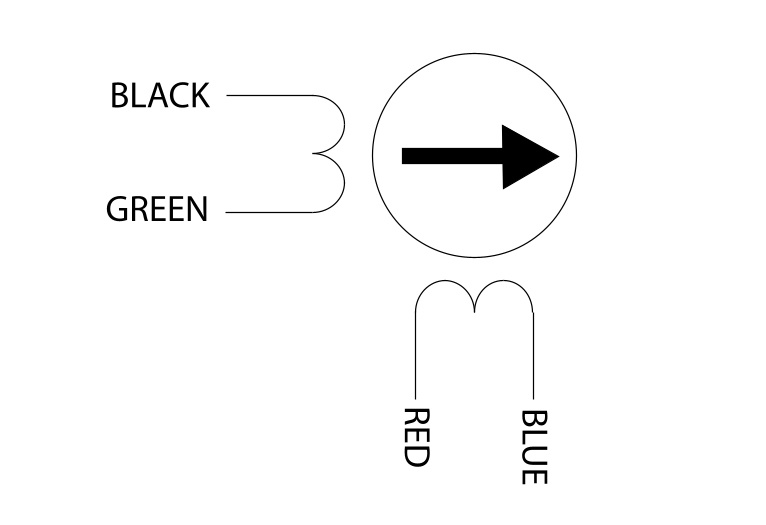

Pinout:

  • Coil-1 = Black & Green wire.
  • Coil-2 = Red & Blue wire.

Features:

  • Very High Torque
  • NEMA-17 Bipolar 4-wire
  • Step angle: 1.8 degree
  • Holding Torque: 4800g-cm@2.5 Amps

Specification

  • Number of steps: 200 Step
  • angle: 1.8 degrees
  • Rated Voltage: 3.1V
  • Phase Resistance: 1.25 ohm
  • Rated Current: 2.5 A
  • Phase Inductance: 1.8 mH
  • Holding torque: 4.8 kg/cm
  • Number of Leads: 4
  • Shaft dimensions: Ø5 x 22 mm
  • Dimensions: 42 x 42 x 48 mm
  • Weight: 340 g
