Product Description:
Single pole panel mount magnetic circuit breaker with manual trip, combing circuit protection, and switching functionality. Suitable for DC circuits up to 32V and AC circuits up to 240Vac.
- Meets American Boat and Yacht Council (ABYC) standards
- The industry standard circuit breaker for Blue Sea Systems" electrical panels
- Combines switching and circuit protection into a single device
- "Trip Free" design cannot be held "ON" during fault current condition
| Amperage |
|
5A AC / DC |
| Number of Poles |
|
1 |
| Color |
|
White |
| Actuator Style |
|
Toggle |
| Operating Voltage max |
|
240 VAC, 32 VDC |
| Circuit Breaker Type |
|

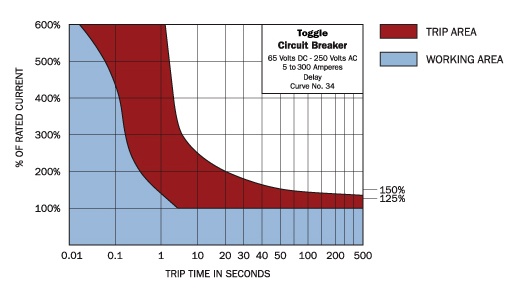

Magnetic Hydraulic - trip free |
| Action |
|
Manual Reset / Disconnect |
| Interrupt Capacity ** |
|
3000A @ 125V AC |
| |
|
1500A @ 240V AC [TUV] |
| |
|
3000A @ 240V AC [UL 1077] |
| |
|
7500A @ 65V DC |
| Operating Temperature |
|
-40° C to +85° C |
| Terminal Screws |
|
#10-32 Stainless Steel |
| Terminal Stud Torque |
|
1.58 Nm |

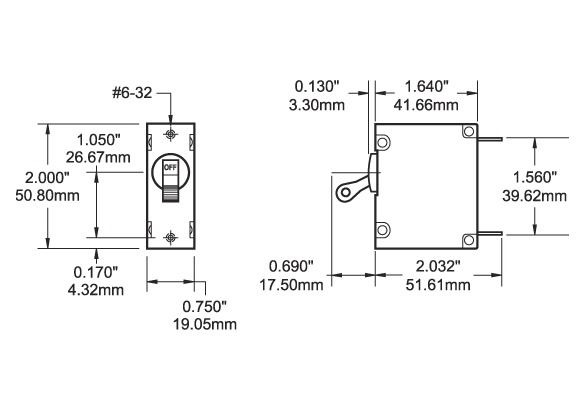

| Mounting Screw |
|
#6-32 Stainless Steel |
| Mounting Screw Torque |
|
0.68 Nm |
| Switching Cycles |
|
10000 |
| Weight |
|
0.08 kg |
| Manufacturer |
|
Blue Sea |
| Manufacturer Part Number |
|
7202 |
** The fault current that a device, normally a fuse or circuit breaker is capable of breaking without damage.
