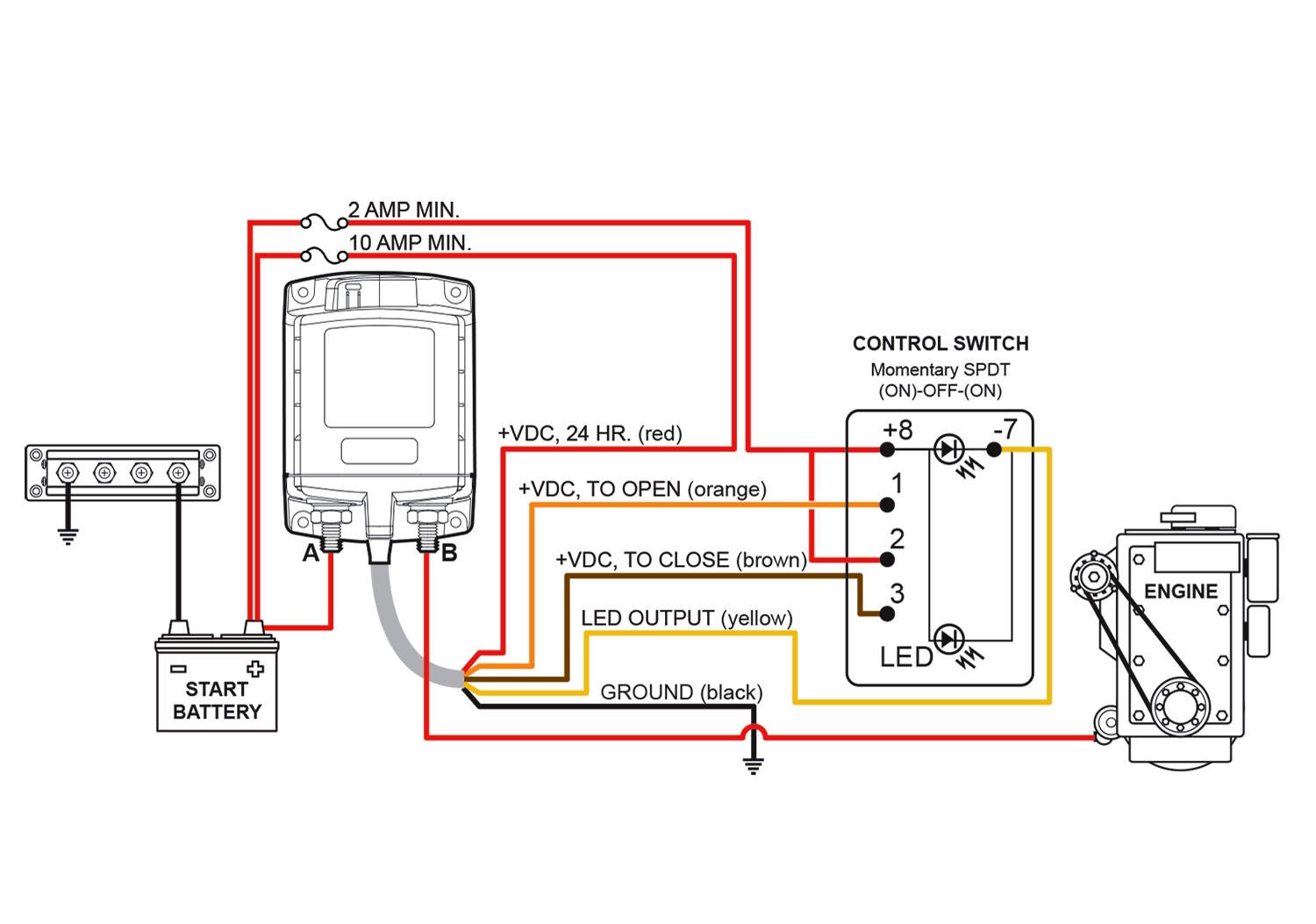

500 Amp magnetic latching switch provides high amperage switching under load, manually or from remote locations.

• Manual override knob provides an added level of safety allowing control with or without power and offering LOCKED OFF capability for servicing
• LED output to remotely indicate switch state - requires optional LED
• 3∕ 8"-16 tin-plated copper studs for maximum conductivity and corrosion resistance
• 7∕ 8" (22 mm) stud length accepts multiple cable terminals
• Label recesses for circuit identification
• Silver alloy contacts provide high reliability for switching live loads

Specifications
Control Circuit Connection		Tinned Wire
Nominal Voltage		24 VDC
Manual Control		Yes
Coil Function		Bi-Stable
Mounting		#10
Amperage Operating Current		0 mA
Amperage Operating Current when changing state		<4 A (40 ms)
Terminal Stud Torque		140 in-lb (15.82 Nm)
Control Circuit Voltage		20.2 to 32.9 VDC
Continuous Rating		500A
Intermittent Rating		700A (5 min)
Cranking Rating		1450 ADC  (30 sec)
Minimum Operating Temperature		-10°C
maximum Operating Temperature		50°C
Cable Size to Meet Ratings		2 x (4/0)
Live Current Switching		300 A @ 12 VDC
Master Control Switch Capability		No
Mechanical Endurance		100,000 Cycles
Terminal Ring Diameter Clearance		29.97 mm
Terminal Ring Diameter Clearance		29.97 mm
Terminal al Stud Length		22.23 mm
Terminal Stud Size		M10
Weight		0.79 kg
Manufacturer		Blue Sea
Manufacturer Part Number		7702
