JST-XH HEADER IPC 6-WAY 2.5mm
Product Code: 14301998
Product Description:
| Number of Positions |
|
6 |
| Number of Rows |
|
1 |
| Pitch |
|
2.5 mm |
| Contact Gender |
|
Plug |
| Gender |
|
Header |
| Termination Type |
|
PC Pins |
| Mounting Type |
|
Through Hole |
| Body Orientation |
|
Straight |
| Housing Material |
|
Polyamide |
| Combustibility Class |
|
UL 94 V-0 |
| Approvals |
|
CSA, TUV, UL |
| Current Rating |
|
3 A |
| Voltage Rating |
|
250 VAC/VDC |
| Operating Temperature |
|
-25 °C to 85 °C |

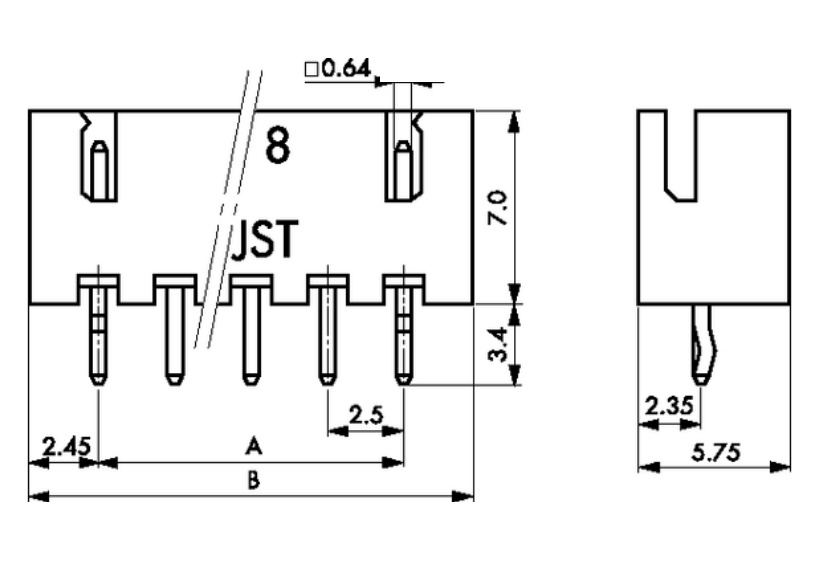

| Dimensions |
|
|
| A |
|
12.5 mm |
| B |
|
17.4 mm |
