| Contacts |
|
Single Pole Change Over SPCO |
| Coil voltage |
|
12 VDC |
| Switching current |
|
Resistive load |
| |
|
5 A @ 250 VAC (200 x 10³ operations) |
| |
|
7 A @ 250 VAC (100 x 10³ operations) |
| |
|
15 A @ 250VAC (30 x 10³ operations) |
| |
|
10 A @ 120VAC (150 x 10³ operations) |
| |
|
15 A @ 120VAC (90 x 10³ operations) |
| Max DC voltage |
|
30 V |
| Switching capacity |
|
240 W |
| Contact material |
|
Ag Alloy |
| Coil resistance |
|
400 Ohm |
| Coil power dissipation |
|
300 mW |
| Pitch |
|
2.54 mm |

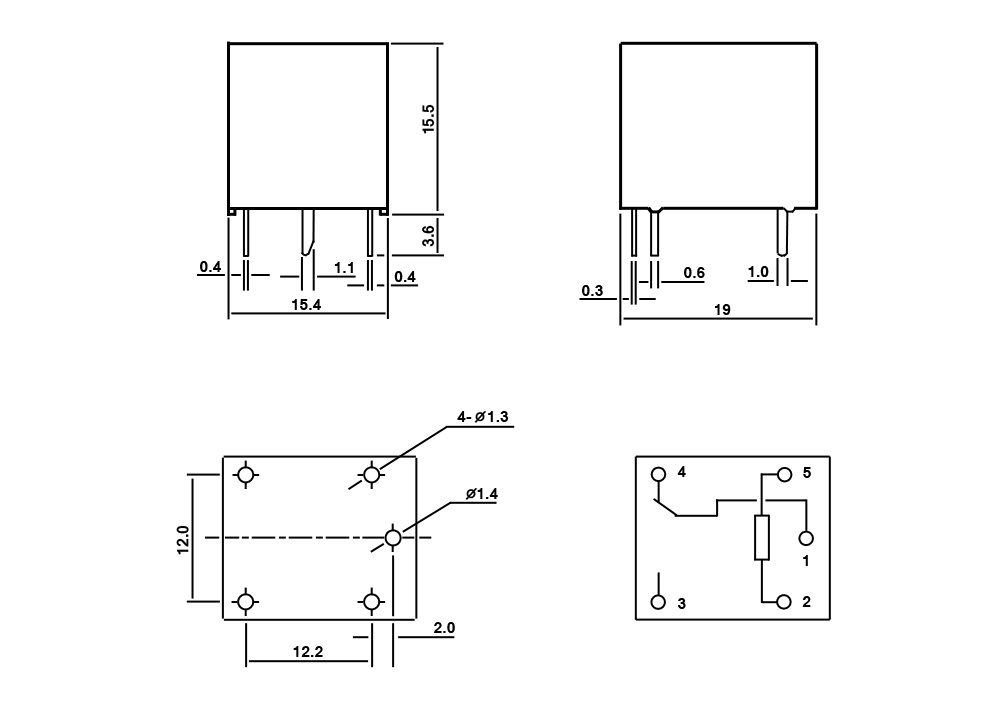

| Dimensions L x W x H |
|
19 x 15.4 x 15.5 mm |
| Test voltage |
|
3 kV |
| Temperature range |
|
-40 to +85 °C |
| Manufacturer |
|
RND |
| Manufacturer part Number |
|
200-00033 |
