JST-PH HOUSING 3-WAY 2.0mm
Product Code: 14301981
Product Description:
| Number of Positions |
|
3 |
| Number of Rows |
|
1 |
| Pitch |
|
2 mm |
| Contact Gender |
|
Socket |
| Gender |
|
Receptacle |
| Termination Type |
|
Crimp |
| Mounting Type |
|
Cable Mount |
| Body Orientation |
|
Straight |
| Housing Material |
|
Polyamide |
| Combustibility Class |
|
UL 94 V-0 |
| Approvals |
|
CSA, TUV, UL |
| Current Rating |
|
2 A |
| Voltage Rating |
|
100 VAC/VDC |
| Operating Temperature |
|
-25°C to +85°C |

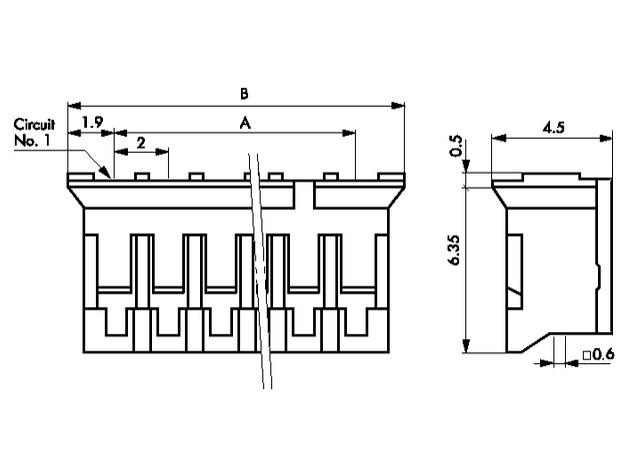

| Dimensions |
|
|
| A |
|
3.0 mm |
| B |
|
6.0 mm |
| Suitable insert |
|
14301989 |
