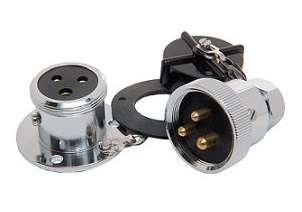

PLUG AND SOCKET KIT 3-WAY 5A
Product Code: MTL0642115
Product Description:
| Connector Type |
|
Through-deck |
| |
|
Plug and Socket |
| Number of Ways |
|
3 |
| Current Rating |
|
5A |
| Voltage Rating (operating) |
|
12 / 24 VDC |
| Cable Connection |
|
Screw |
| Conductor Diameter max. |
|
3.7 mm |
| Connection Mating |
|
Non-reversible |
| Mating Lock |
|
Screw-ON |
| Body Material |
|
Chrome Plated Brass |
| Insulation Material |
|
ABS |
| Overall Height (mated plug & socket) |
|
64 mm |
| Base Diameter |
|
45 mm |
| Base Height with Cap |
|
40 mm |
| Plug Diameter max. |
|
35 mm |
| Overall Cable Diameter |
|
8 mm |
| Mounting Screws Hole Diameter |
|
4.4 mm |
| Socket Cover Material |
|
ABS |
| Manufacturer |
|
Trem |
| Manufacturer Part Number |
|
L0642115 |
