Product Description:

SD Card Reading Writing Module for Arduino with the onboard 3.3V regulator. This SD Card module makes SD applications easier and simple. Through programming, SD cards can be read and written using Arduino. Applications include MP3 Player and MCU/ARM system control.

It can be easily interfaced as a peripheral to Arduino projects, and other embedded boards and microcontrollers. The SPI interface can handle read and write operations to the SD card through programming. This module can handle 2GB  SD cards.

Note: Package Does NOT include a memory card.

Specifications and Features :

1. SD Card module can make SD application easier and simple.
2. This module can handle 2GB SD cards.
3. Interfaces as a peripheral to Arduino sensor shield module.
4. Reading and writing to the SD card using your Arduino.
5. Applications include MP3 Player, and  MCU/ARM system control.

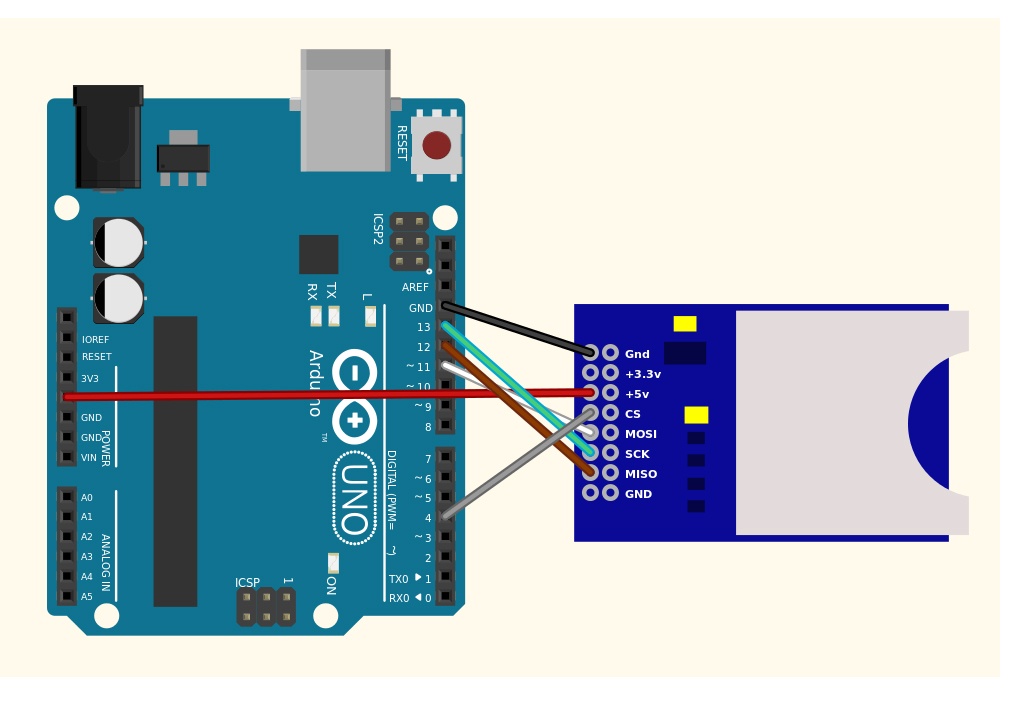

6. All SD SPI pins output, MOSI, SCK, MISO, and CS are available.
7. Support 5V/3.3V input.
8. LED indicator.
9. SD Card Holder.
10. Onboard 3.3V regulator (AMS1117-3.3) for +5v to 3.3V generation. 3.3V is also available as output.
