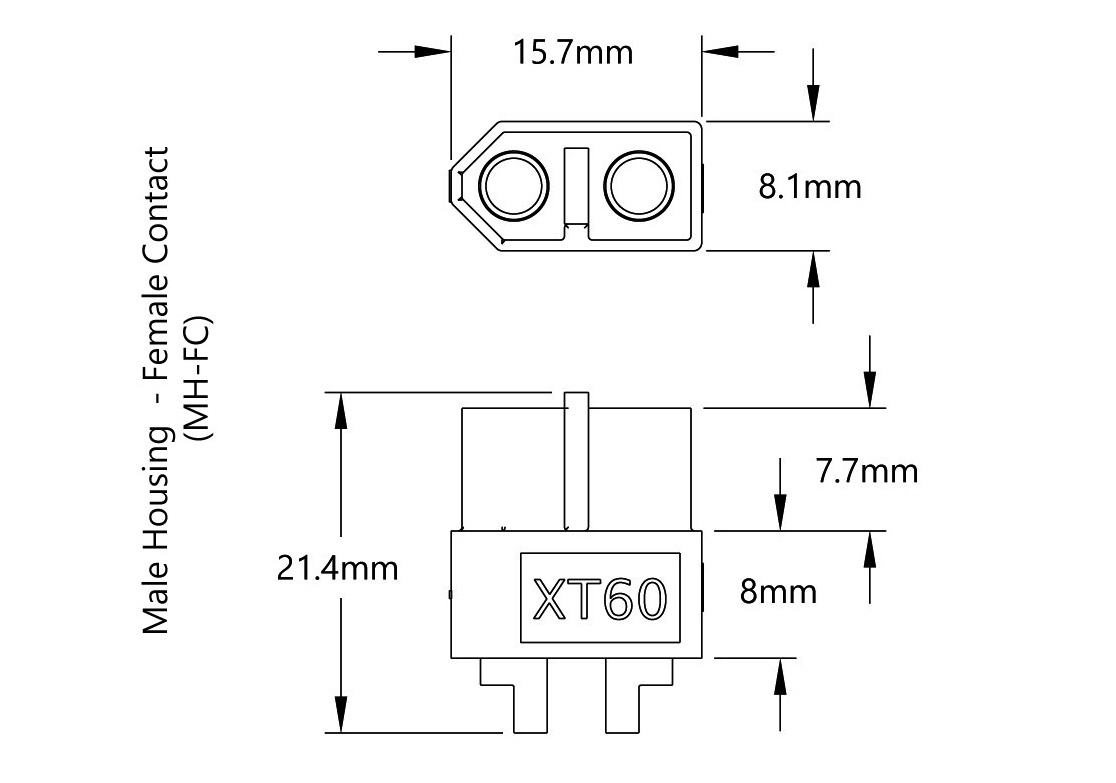

XT60 PLUG AND SOCKET FOR LIPO BATTERY CONNECTION
Product Code: HR0464
Product Description:
| Connector Type |
|
XT60 Plug & Socket |
| Body Material |
|
Gold-plated brass & PA |
| Internal Material |
|
Nylon / PA |
| Color |
|
Yellow |
| Internal Resistance |
|
0.5mΩ |
| Rated Current |
|
15A |
| Peak Current |
|
60A |
| Rated Voltage max |
|
500VDC |
| Operating Temperature |
|
-20 to 120°C |
| Recommended Wire Size |
|
0.8 to 4mm² |
| Pitch |
|
7.2mm |
| Recommend Soldering |
|
480°C for 4sec |
| Weight |
|
4 grams |
