RELAY PCB MOUNTING SPNO 12VDC 30A
Product Code: 12-13721255
Product Description:

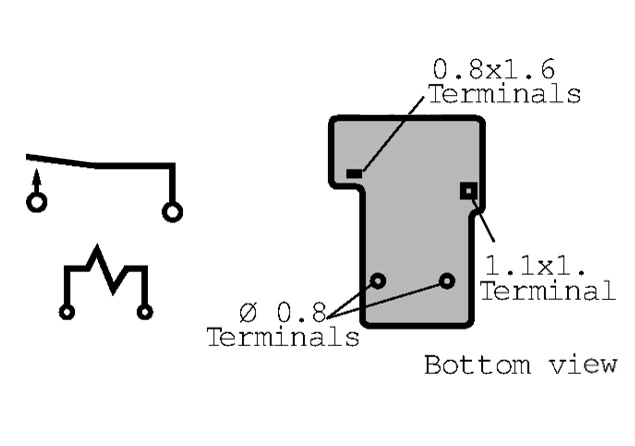

| Contacts |
|
1 Normally Open (SPNO) |
| Coil voltage |
|
12 VDC |
| Coil resistance |
|
144 Ohm |
| Coil power |
|
1000 mW |
| Relay type |
|
Monostable |
| Switching current |
|
30 A @ 240 VAC |
| Contact material |
|
AgCdO |
| Switching capacity |
|
1.6 kW / 7.2 kVA |

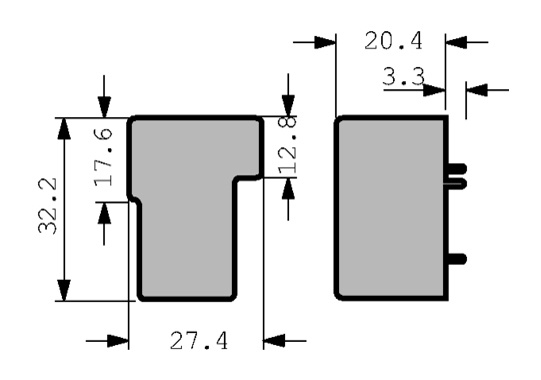

| Dimensions (L x W x H) |
|
32.2 x 27.4 x 20.4 mm |
| Switching voltage |
|
277 VAC |
| Test voltage |
|
2.5 kV |
| Protection rating |
|
IP67 |
| Temperature range |
|
-55 to +85 °C |
| Manufacturer |
|
TE Connectivity |
| Manufacturer Part Number |
|
1-1393210-3 |
