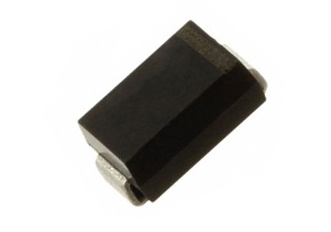

SMD FAST RECOVERY DIODE 2A 1000V 75ns US2M
Product Code: 22-US2MDIO
Product Description:
| Type |
|
US2M |
| Configuration |
|
Single |
| Reverse Repetitive Voltage Max. (Vrrm) |
|
1000 V |
| Peak Average Forward Current (If(AV)) |
|
2 A |
| Forward Voltage (Vf) |
|
1.7 V |
| Peak Non-Repetitive Surge Current (Itsm) |
|
50A |
| Peak Reverse Current |
|
200 uA |
| Reverse Recovery Time (trr) |
|
75 ns |
| Operating Temperature |
|
-50°C to 150°C |
| Package Type |
|
DO-214AA |
| Mounting Type |
|
SMD |
| Capacitance |
|
15 pF |
| Thermal Resistance |
|
15 K/W |
| Manufacturer |
|
Diotec |
