RELAY PCB MOUNTING MIN SPCO 5VDC 1A
Product Code: 12-30152723
Product Description:
| Relay type |
|
Monostable |
| Contacts |
|
1 Change-Over (SPCO) |
| Coil Voltage |
|
5 VDC |
| Connection |
|
PCB Mounting (THD) |
| Switching Current |
|
0.5 A @ 125 VAC |
| |
|
1 A @ 30 VDC |
| Switching Power |
|
62.5 VA @ 125 VAC |
| |
|
30 W @ 60 VAC |
| Switching Voltage |
|
125 VAC / 60 VDC |
| Operate Time |
|
5 ms |
| Release Time |
|
5 ms |
| Contact Material |
|
AgNi + Au |
| Coil Resistance |
|
167 Ohms |
| Coil Power |
|
150 mW |
| Dimensions (L x W x H) |
|
12.5 x 7.5 x 10 mm |

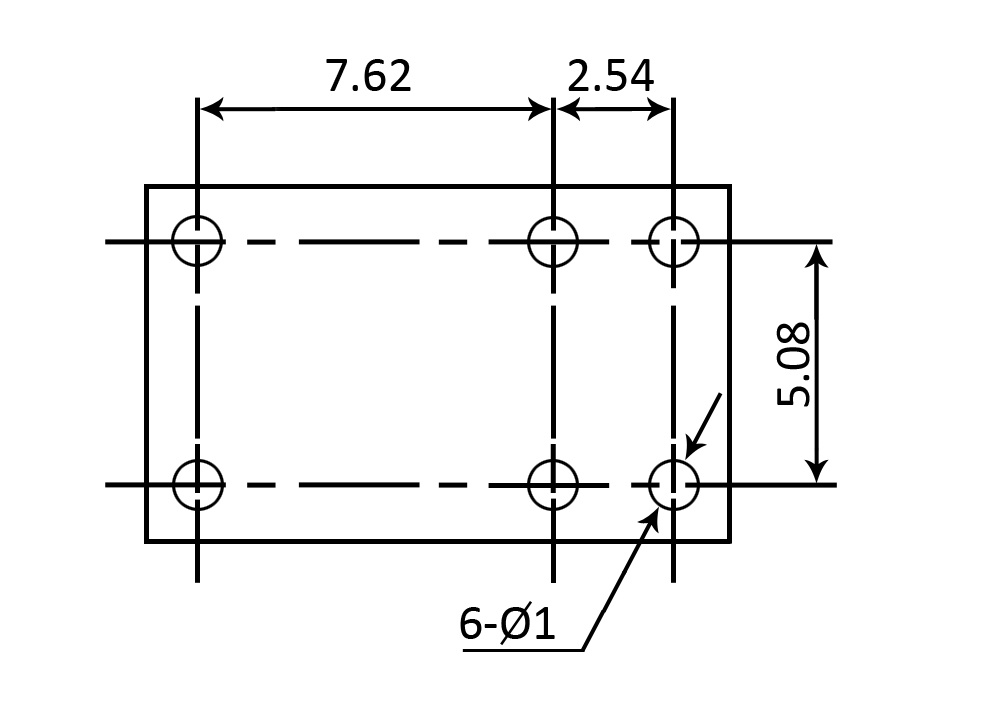

| Pitch |
|
2.54 mm |
| Temperature Range |
|
-30 to +70 °C |
| Manufacturer |
|
Hongfa |
| Manufacturer Part Number |
|
HFD23/005-1ZS |
