RELAY PCB MOUNTING SPCO 12VDC 16A LOW PROFILE
Product Code: 12-30152738
Product Description:

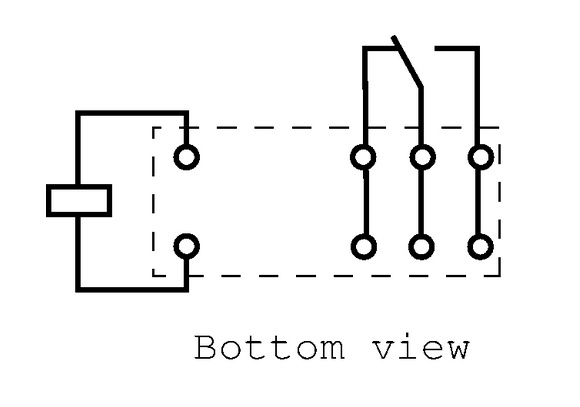

| Contacts |
|
1 Change Over (SPCO) |
| Coil voltage |
|
12 VDC |
| Coil resistance |
|
360 Ohm |
| Coil power |
|
400 mW |
| Relay type |
|
Monostable |
| Switching current |
|
16 A @ 250 VAC |
| |
|
16 A @ 24 VDC |
| Switching voltage |
|
250 VDC / 440 VAC |
| Contact material |
|
AgNi |
| Switching capacity |
|
4000 VA |

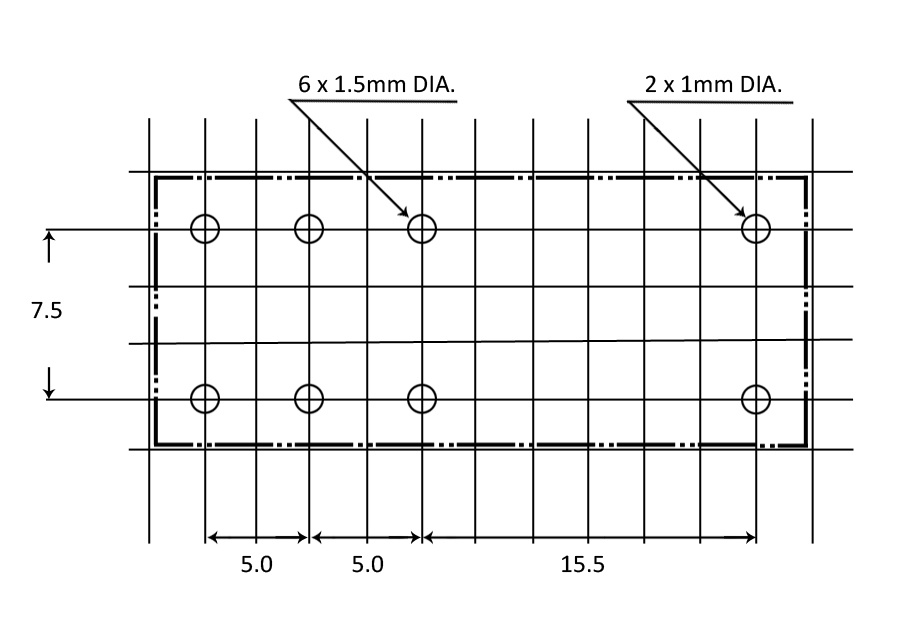

| Pitch |
|
5 mm |
| Termination Type |
|
PCB Pins |
| Mounting Type |
|
Through Hole |
| Dimensions L x W x H |
|
29.3 x 12.7 x 15.7 mm |
| Temperature range |
|
-40 to +85 °C |
| Manufacturer |
|
Relpol |
| Manufacturer Part Number |
|
RM85-2011-35-1012 |
